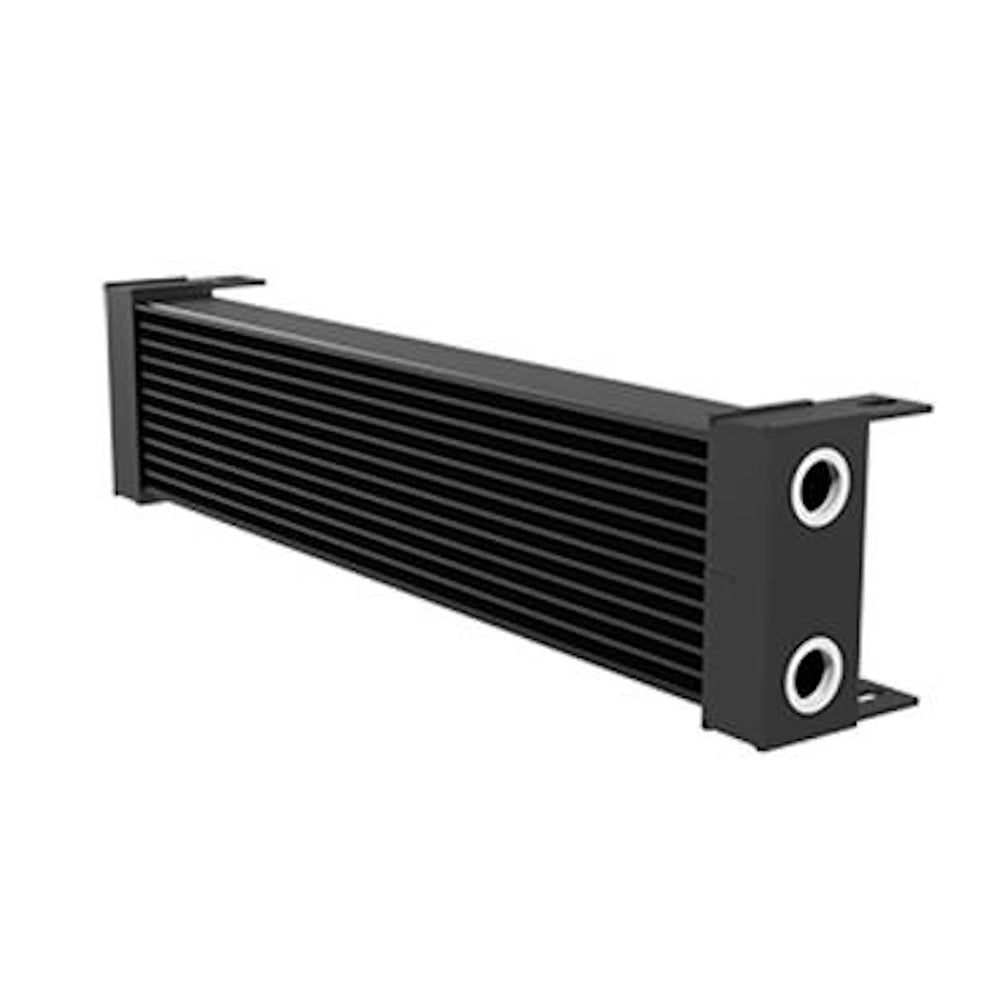

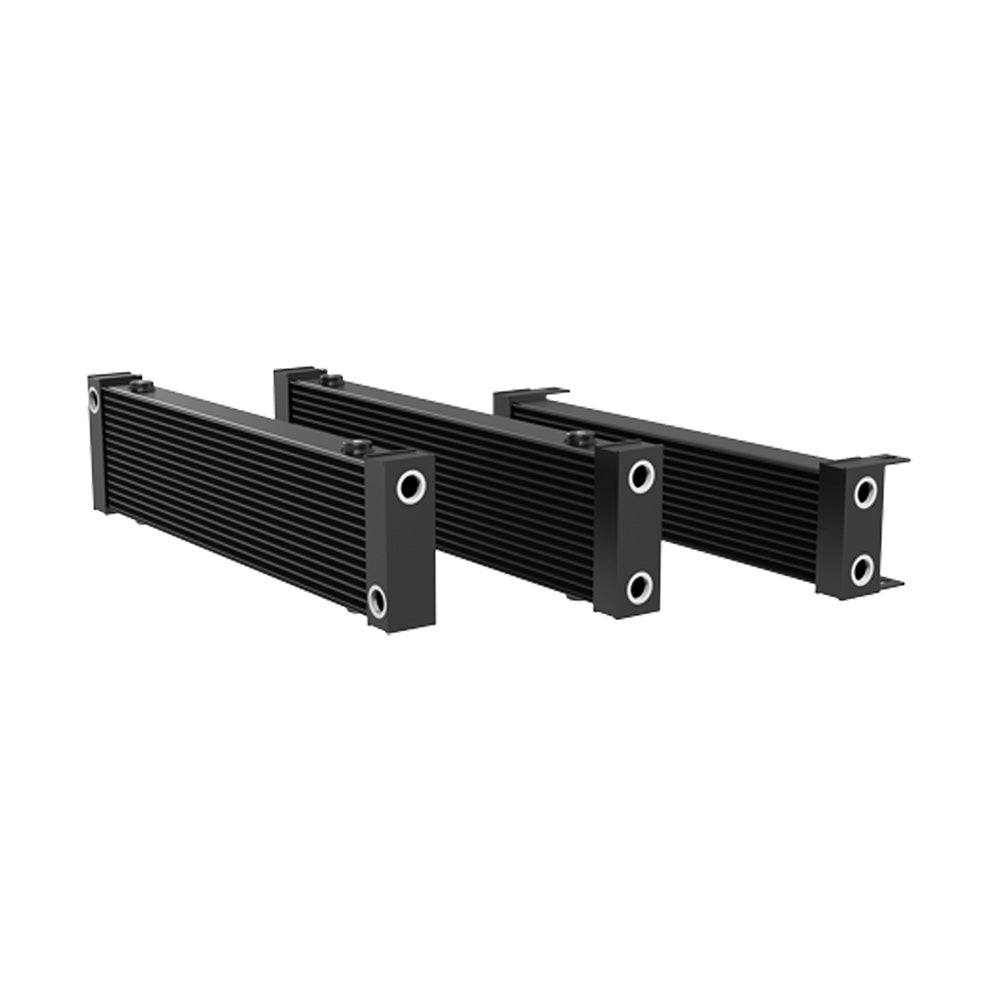

Setrab Pro Line oil cooler – COM
The Setrab Pro Line COM oil cooler offers maximum flexibility when designing oil and water cooling circuits. Featuring the COM port layout (BSP threads), this cooler is ideally suited for versatile fitting systems – perfect for motorsport and industrial applications requiring the highest reliability.
Its robust construction ensures excellent heat dissipation and reliably protects engine and system components from overheating and power loss, even under extreme loads. Like all Pro Line models, it is also approved for water cooling with a minimum of 40% glycol.
Images shown are for illustration only. Actual product configuration may vary depending on version, specification, or vehicle application.
Delivery time: approx. 1-2 weeks
This item will be ordered exclusively for you after your order. Delivery time is approx. 1-2 weeks.
|
Type |
Rows |
Connection |
Depth (mm) |
Length (mm) |
Height (mm) |
|
464COMF-12 2P |
12 |
M22x1.5 U-Flow (2 pass) |
Total 50 / Core 46 |
Total 532 / Core 464 |
Total 121 / Core 107 |
|

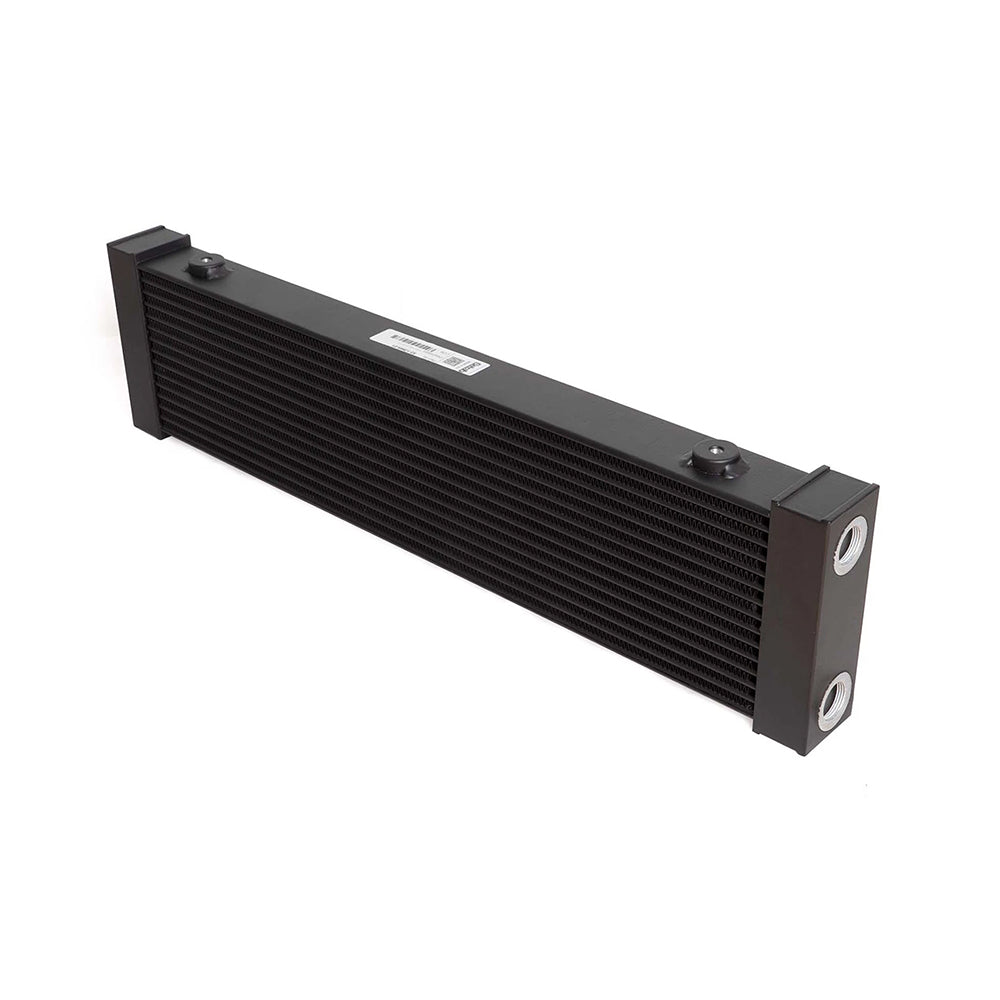

528COMF-15 2P |
15 |
M22x1,5 U-Flow (2 pass) |
Total 50 / Core 46 |
Total 596 / Core 528 |
Total 148 / Core 136 |
|

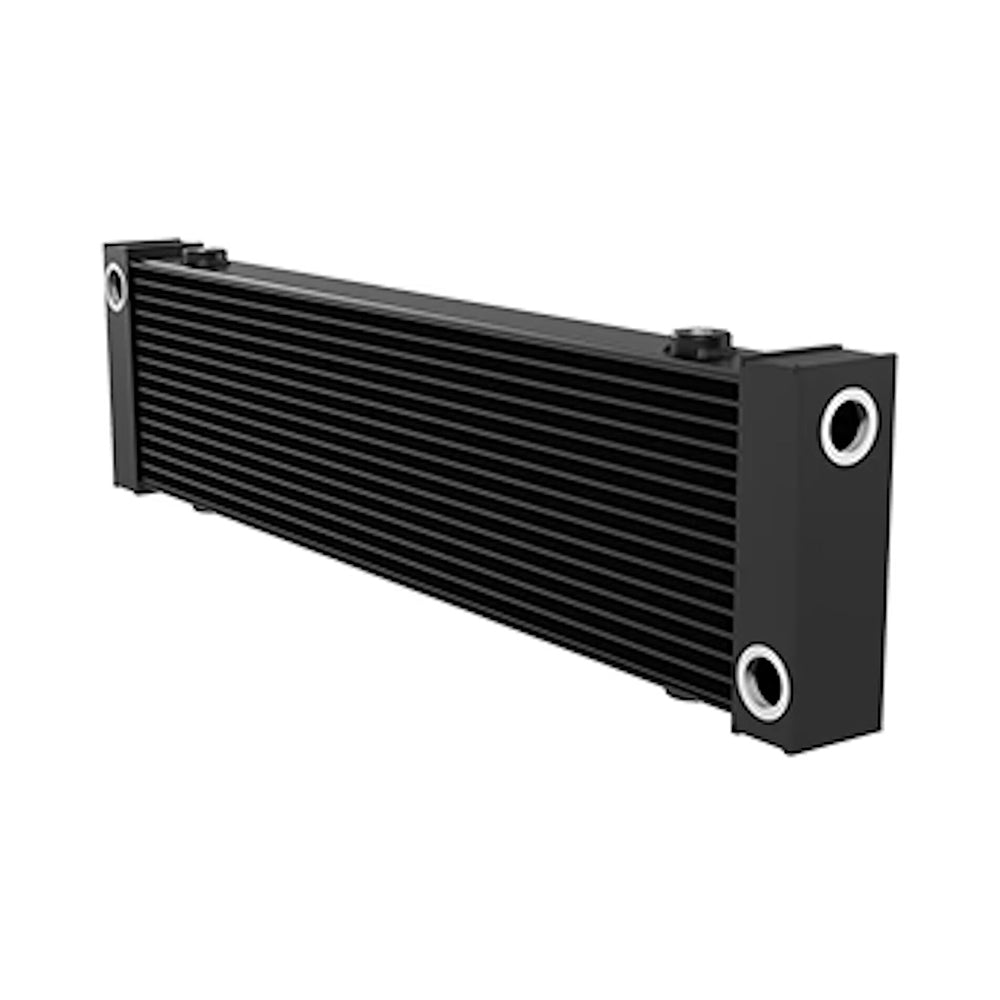

528COMF-15 |
15 |
M22x1,5 I-Flow (1 pass) |
Total 50 / Core 46 |
Total 596 / Core 528 |
Total 148 / Core 136 |
